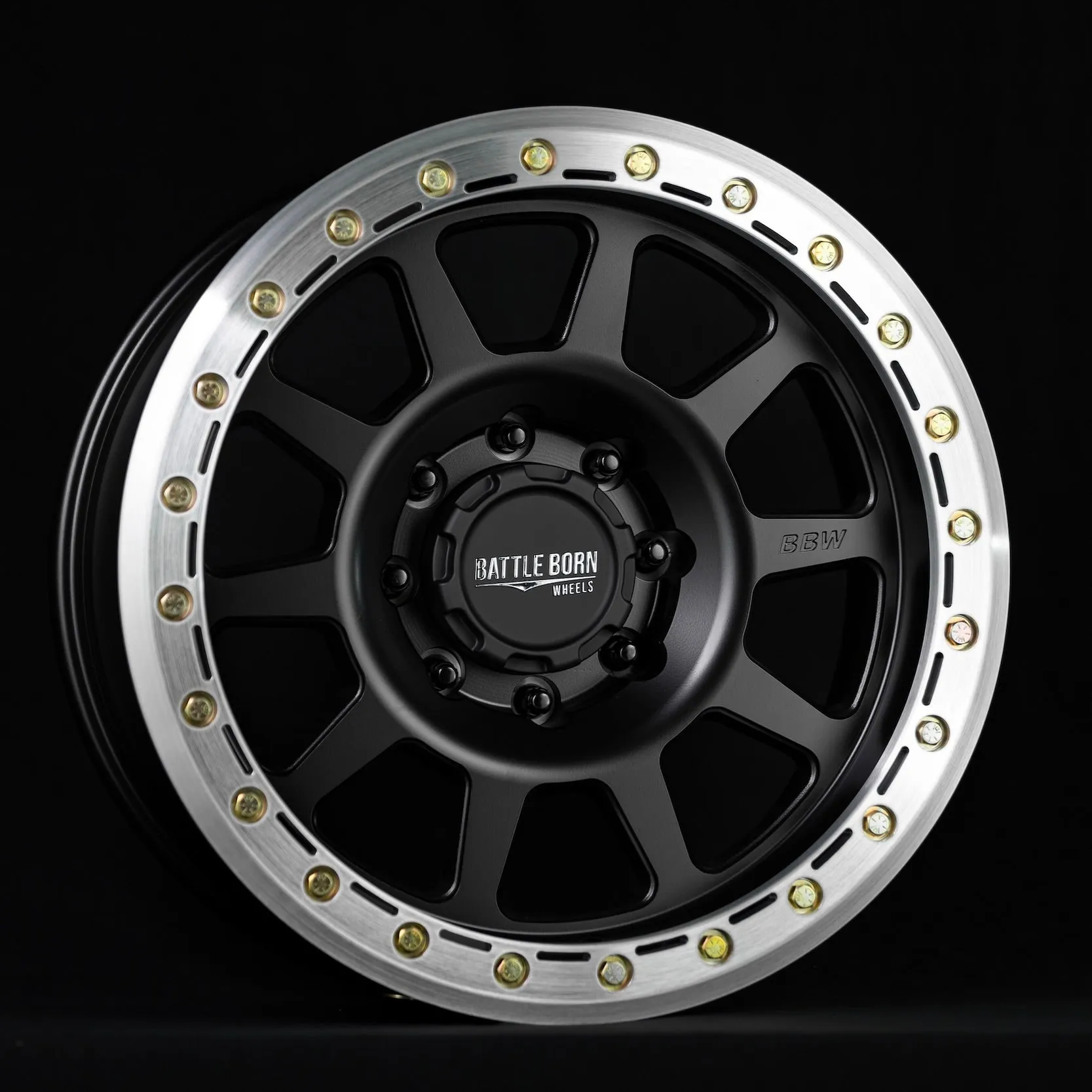

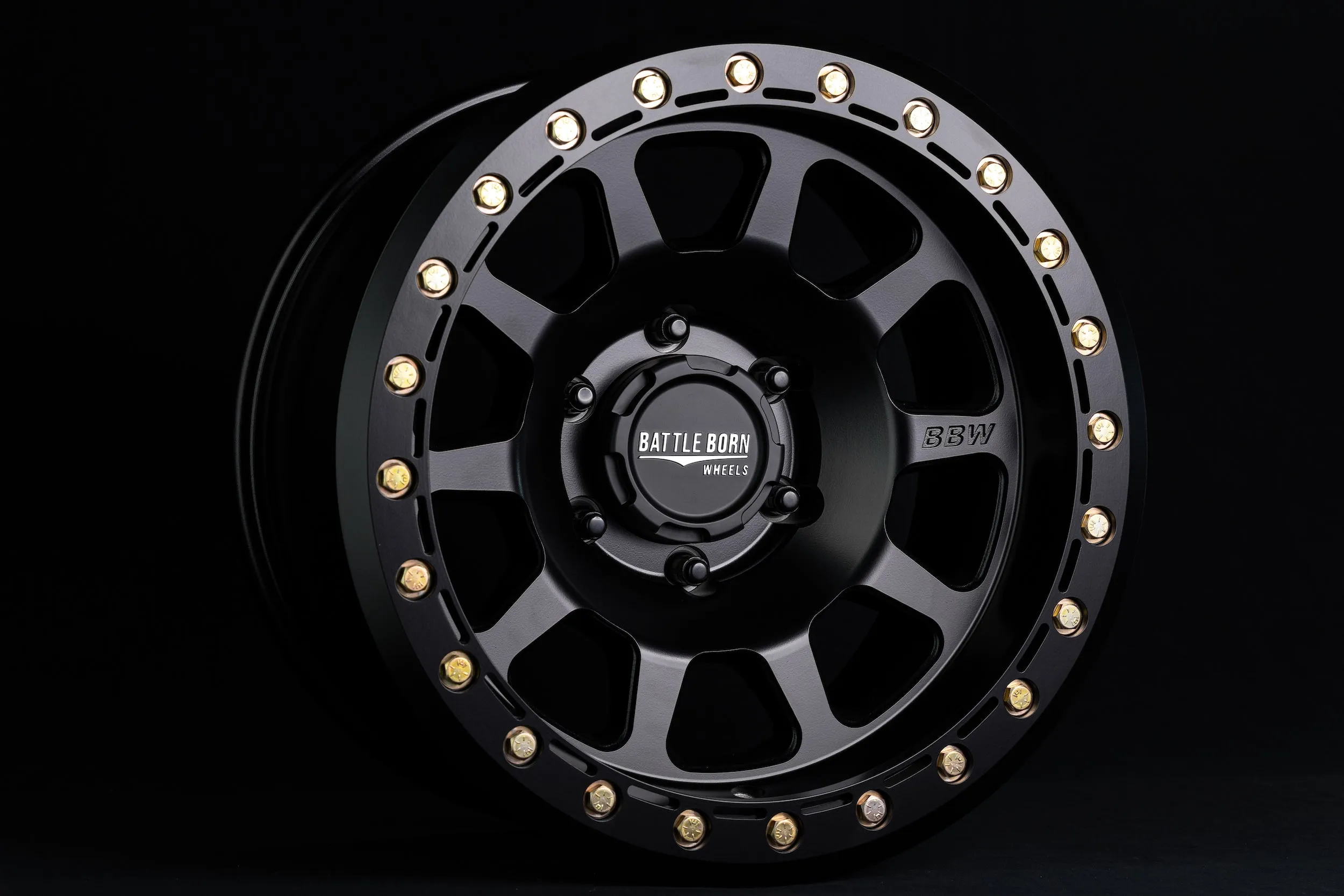

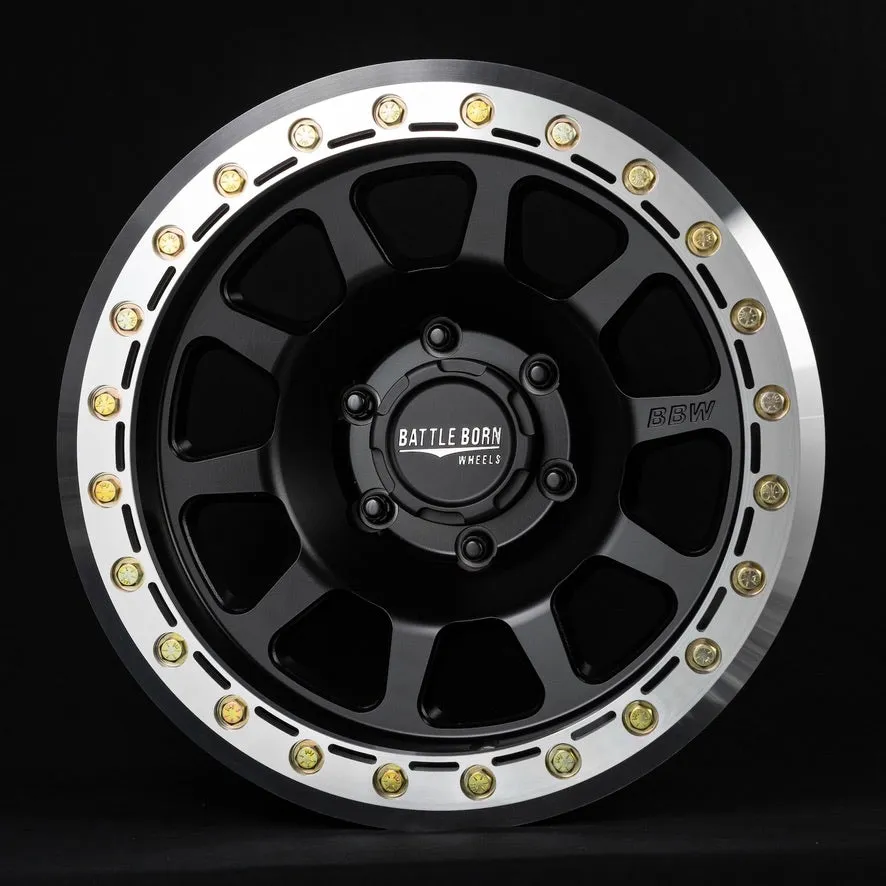

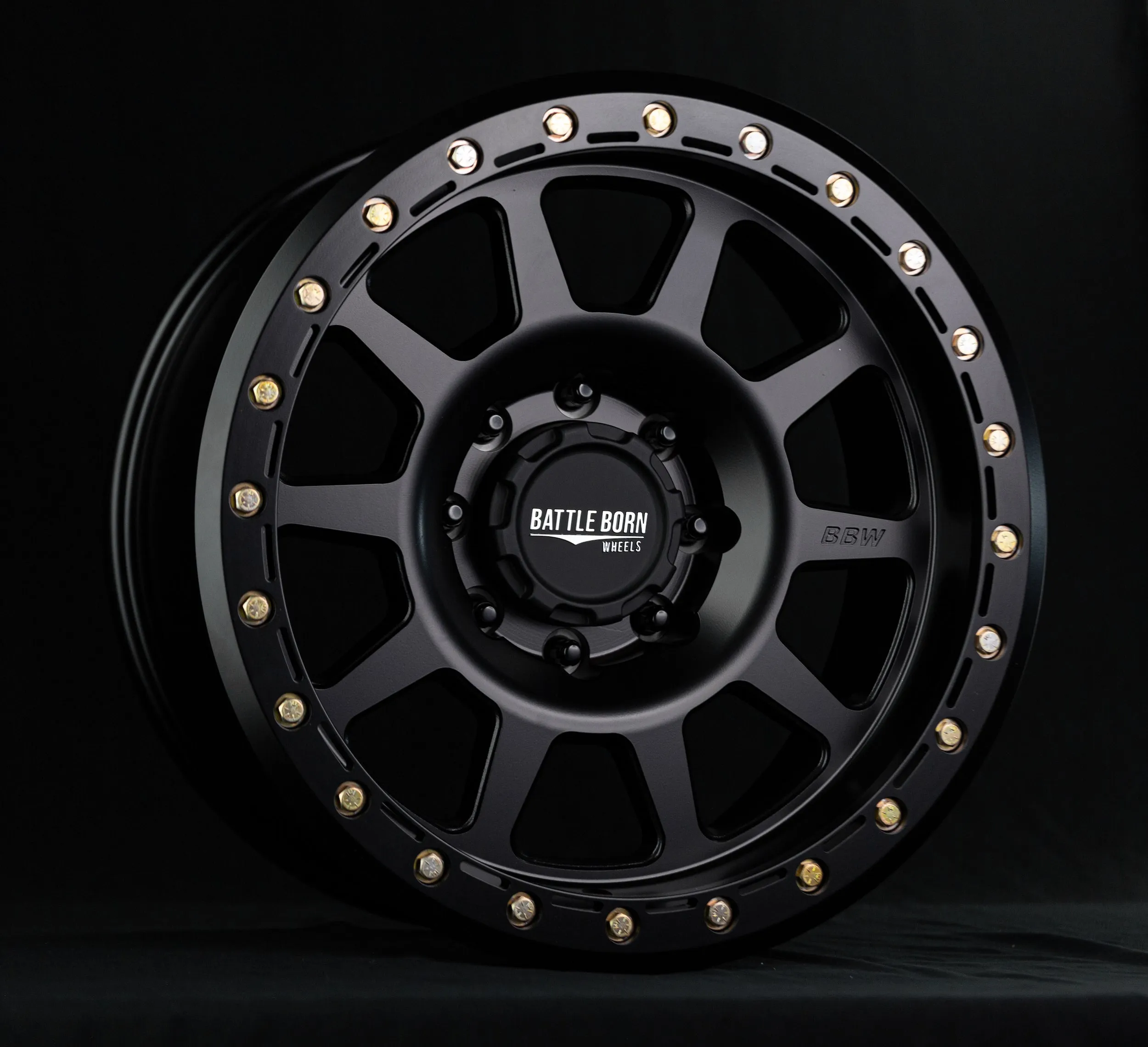

Name: SIERRA | FLOW FORMED | BLACKOUT
SKU: 136555

The Sierra is offered in a 17x9 or a 20x9! The wheel is made by Flow Formed Aluminum Construction. After it has been casted, Flow Forming Technology applies pressure to the inner barrel of the wheel, while spinning. This process stretches and compresses the aluminum, which increases tensile strength by optimizing grain structure of the aluminum.

The Sierra is available in a wide variety of bolt patterns and two offset options. Choose 4.50" backspace (-13mm Offset) to push the wheel further out and 5" backspace (0mm Offset) to bring the wheel closer into the steering knuckle. By having this higher offset wheel, your steering scrub radius will result in better performance and longevity of components. We also enlarged the lug nut bore for better lug nut options and clearance. If unsure, please email or call with questions regarding backspace and bolt patterns.

The Sierra offers you the option to run a true off-road beadlock clamping ring for race/extreme vehicle use or a "simulated" accent ring for your daily driver. Both of these rings are a Forged 6061-T6 Construction for the ultimate combination of strength and lightweight. The weep holes on the inner section of the ring allow water and debris to escape after those water crossings and car washes. The ring hardware is made up of (24) zinc yellow-chromate plated hex head screws, in Grade 8 steel, 3/8"-16 thread size, and 1-1/4" long. We’ve taken the extra time to drill and tap (48) redundant holes in the lip of the wheel for long term worry free use. The beadlock rings are counterbored to provide the best protection for your bolts.

This wheel is offered in a standard BLACK SATIN Finish.

Please allow a 3 week lead-time for us to CNC mill bolt patterns and apply coatings and finishes.

Reach out to us at Battle Born Wheels with any questions!

775-400-4048 / [email protected]

Available in 17x9 or 20x9
Flow Formed Aluminum Casting
Forged 6061-T6 Heat Treated Rings
Dual Mounting Design - Available with Off-Road Use Beadlock Ring or Simulated Accent Ring
Slotted Weep Holes
Wide Selection of Bolt Patterns (Email/Call for Custom Fitments)
Extra Large Lug Nut Socket Clearance
24 Grade 8 Steel 3/8"-16 Thread, 1-1/4" Length Hardware
48 Redundant Double Drilled and Tapped Beadlock Screw Holes
Counterbored Beadlock Screw Holes in Ring
Knurling Applied on Wheel Lip and Beadlock Ring Mating Surfaces
Designed and CNC Machined in Carson City Nevada, Casting Imported.

Part#	Model	Finish	Size	Bolt Pattern	Backspace	Offset	Bore	Weight	Load	Function	TPMS Compatibility	MSRP (USD)
S179545450FFBB	Sierra	Satin Black	17x9	5x114.3	4.50”	-13mm	71.5mm	37.6 lbs	2500 lbs	Beadlock	Yes	$632.50
S179545500FFBB	Sierra	Satin Black	17x9	5x114.3	5.00”	0mm	71.5mm	37.6 lbs	2500 lbs	Beadlock	Yes	$632.50
S17955450FFBB	Sierra	Satin Black	17x9	5x127	4.50”	-13mm	71.5mm	37.6 lbs	2500 lbs	Beadlock	Yes	$632.50
S17955500FFBB	Sierra	Satin Black	17x9	5x127	5.00”	0mm	71.5mm	37.6 lbs	2500 lbs	Beadlock	Yes	$632.50
S179555450FFBB	Sierra	Satin Black	17x9	5x139.7	4.50”	-13mm	108mm	37.6 lbs	2500 lbs	Beadlock	Yes	$632.50
S179555500FFBB	Sierra	Satin Black	17x9	5x139.7	5.00”	0mm	108mm	37.6 lbs	2500 lbs	Beadlock	Yes	$632.50
S1796135450FFBB	Sierra	Satin Black	17x9	6x135	4.50”	-13mm	108mm	37.6 lbs	2500 lbs	Beadlock	Yes	$632.50
S1796135500FFBB	Sierra	Satin Black	17x9	6x135	5.00”	0mm	108mm	37.6 lbs	2500 lbs	Beadlock	Yes	$632.50
S179655450FFBB	Sierra	Satin Black	17x9	6x139.7	4.50”	-13mm	108mm	37.6 lbs	2500 lbs	Beadlock	Yes	$632.50
S179655500FFBB	Sierra	Satin Black	17x9	6x139.7	5.00”	0mm	108mm	37.6 lbs	2500 lbs	Beadlock	Yes	$632.50
S179865450FFBB	Sierra	Satin Black	17x9	8x165.1	4.50”	-13mm	130.81mm	35.7 lbs	4000 lbs	Beadlock	Yes	$632.50
S179865500FFBB	Sierra	Satin Black	17x9	8x165.1	5.00”	0mm	130.81mm	35.7 lbs	4000 lbs	Beadlock	Yes	$632.50
S1798170450FFBB	Sierra	Satin Black	17x9	8x170	4.50”	-13mm	130.81mm	35.7 lbs	4000 lbs	Beadlock	Yes	$632.50
S1798170500FFBB	Sierra	Satin Black	17x9	8x170	5.00”	0mm	130.81mm	35.7 lbs	4000 lbs	Beadlock	Yes	$632.50
S1798180450FFBB	Sierra	Satin Black	17x9	8x180	4.50”	-13mm	130.81mm	35.7 lbs	4000 lbs	Beadlock	Yes	$632.50
S1798180500FFBB	Sierra	Satin Black	17x9	8x180	5.00”	0mm	130.81mm	35.7 lbs	4000 lbs	Beadlock	Yes	$632.50
S20955450FFBB	Sierra	Satin Black	20x9	5x127	4.50”	-13mm	71.5mm	46.0 lbs	2500 lbs	Beadlock	Yes	$801.25
S20955500FFBB	Sierra	Satin Black	20x9	5x127	5.00”	0mm	71.5mm	46.0 lbs	2500 lbs	Beadlock	Yes	$801.25
S2096135450FFBB	Sierra	Satin Black	20x9	6x135	4.50”	-13mm	108mm	46.0 lbs	2500 lbs	Beadlock	Yes	$801.25
S2096135500FFBB	Sierra	Satin Black	20x9	6x135	5.00”	0mm	108mm	46.0 lbs	2500 lbs	Beadlock	Yes	$801.25
S2096135550FFBB	Sierra	Satin Black	20x9	6x135	5.50”	13mm	108mm	46.0 lbs	2500 lbs	Beadlock	Yes	$801.25
S209655450FFBB	Sierra	Satin Black	20x9	6x139.7	4.50”	-13mm	108mm	46.0 lbs	2500 lbs	Beadlock	Yes	$801.25
S209655500FFBB	Sierra	Satin Black	20x9	6x139.7	5.00”	0mm	108mm	46.0 lbs	2500 lbs	Beadlock	Yes	$801.25
S209655550FFBB	Sierra	Satin Black	20x9	6x139.7	5.50”	13mm	108mm	46.0 lbs	2500 lbs	Beadlock	Yes	$801.25
S209865450FFBB	Sierra	Satin Black	20x9	8x165.1	4.50”	-13mm	130.81mm	46.0 lbs	4000 lbs	Beadlock	Yes	$801.25
S209865500FFBB	Sierra	Satin Black	20x9	8x165.1	5.00”	0mm	130.81mm	46.0 lbs	4000 lbs	Beadlock	Yes	$801.25
S209865550FFBB	Sierra	Satin Black	20x9	8x165.1	5.50”	13mm	130.81mm	46.0 lbs	4000 lbs	Beadlock	Yes	$801.25
S2098170450FFBB	Sierra	Satin Black	20x9	8x170	4.50”	-13mm	130.81mm	46.0 lbs	4000 lbs	Beadlock	Yes	$801.25
S2098170500FFBB	Sierra	Satin Black	20x9	8x170	5.00”	0mm	130.81mm	46.0 lbs	4000 lbs	Beadlock	Yes	$801.25
S2098170550FFBB	Sierra	Satin Black	20x9	8x170	5.50”	13mm	130.81mm	46.0 lbs	4000 lbs	Beadlock	Yes	$801.25
S2098180450FFBB	Sierra	Satin Black	20x9	8x180	4.50”	-13mm	130.81mm	46.0 lbs	4000 lbs	Beadlock	Yes	$801.25
S2098180500FFBB	Sierra	Satin Black	20x9	8x180	5.00”	0mm	130.81mm	46.0 lbs	4000 lbs	Beadlock	Yes	$801.25
S2098180550FFBB	Sierra	Satin Black	20x9	8x180	5.50”	13mm	130.81mm	46.0 lbs	4000 lbs	Beadlock	Yes	$801.25
